Description

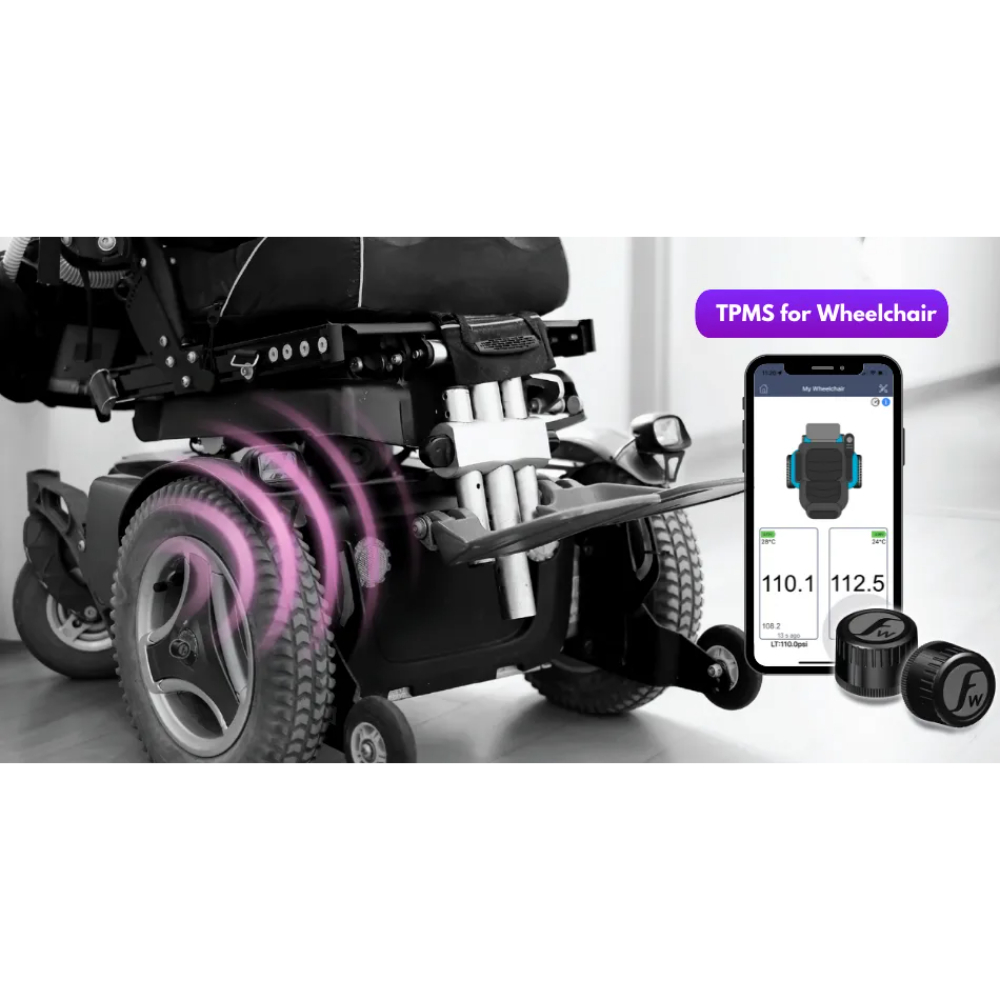

The World's First All Bluetooth Smart TPMS for Wheelchairs

FOBO Wheely is a Tyre Pressure Monitoring System (TPMS) for wheelchairs with air-filled pneumatic tires, using the latest Bluetooth 5.0 technology that works directly with your smart device using Android 5.0 and iOS 12 or later.

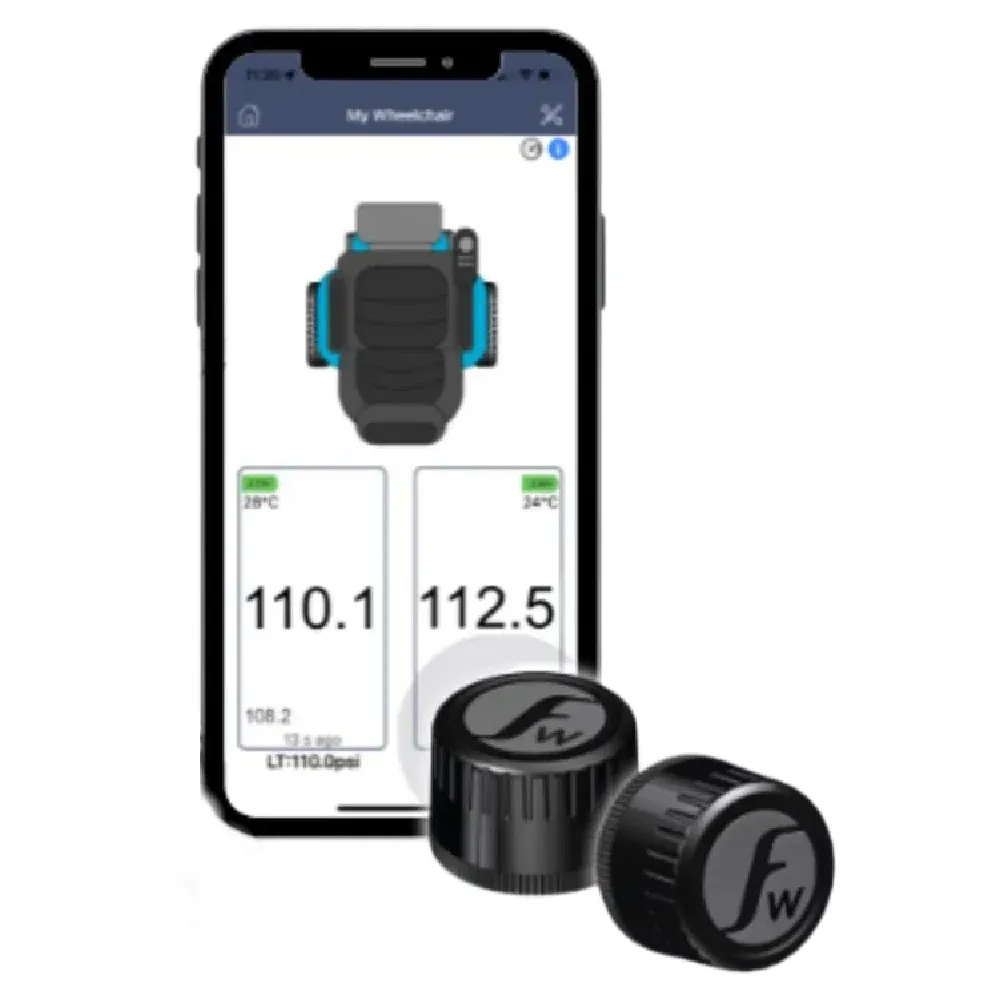

Real-time wheelchair tyre pressure and temperature monitoring.
Multiple modes of alerts.

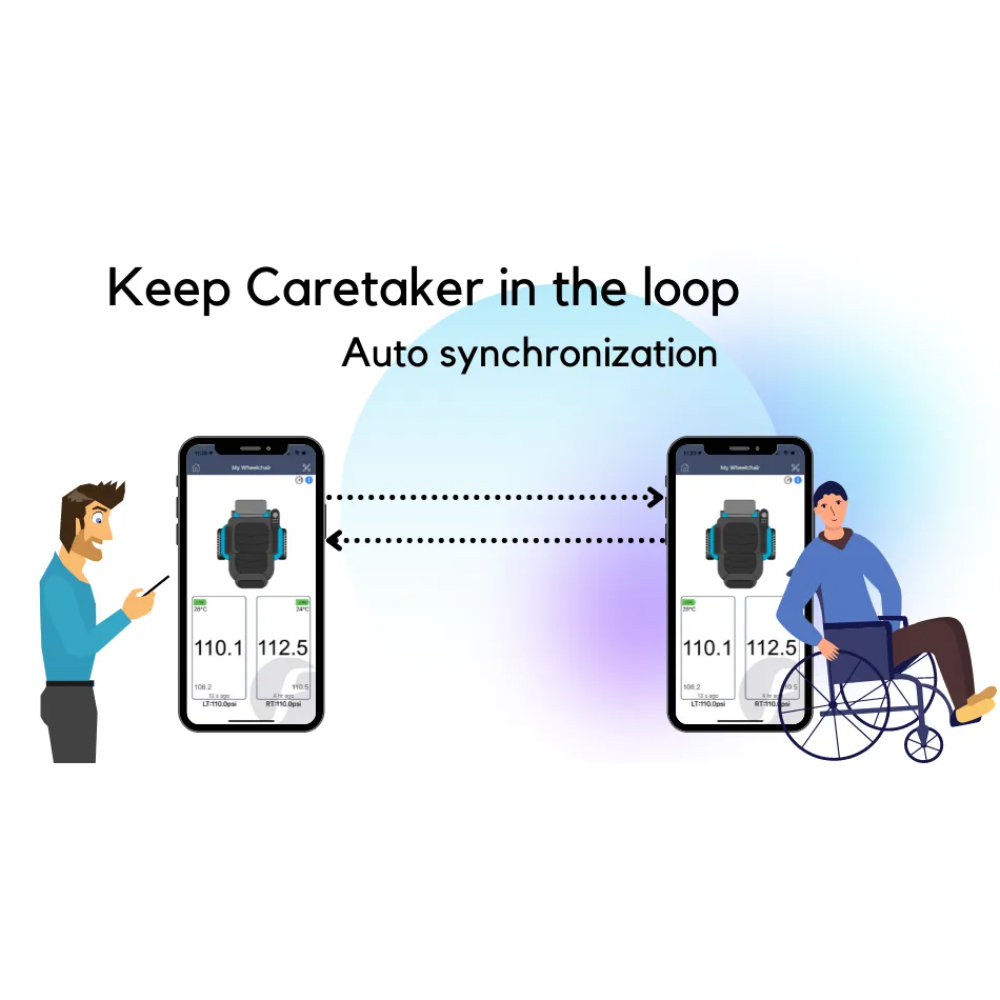

FOBO "Caretaker" feature for remote monitoring.

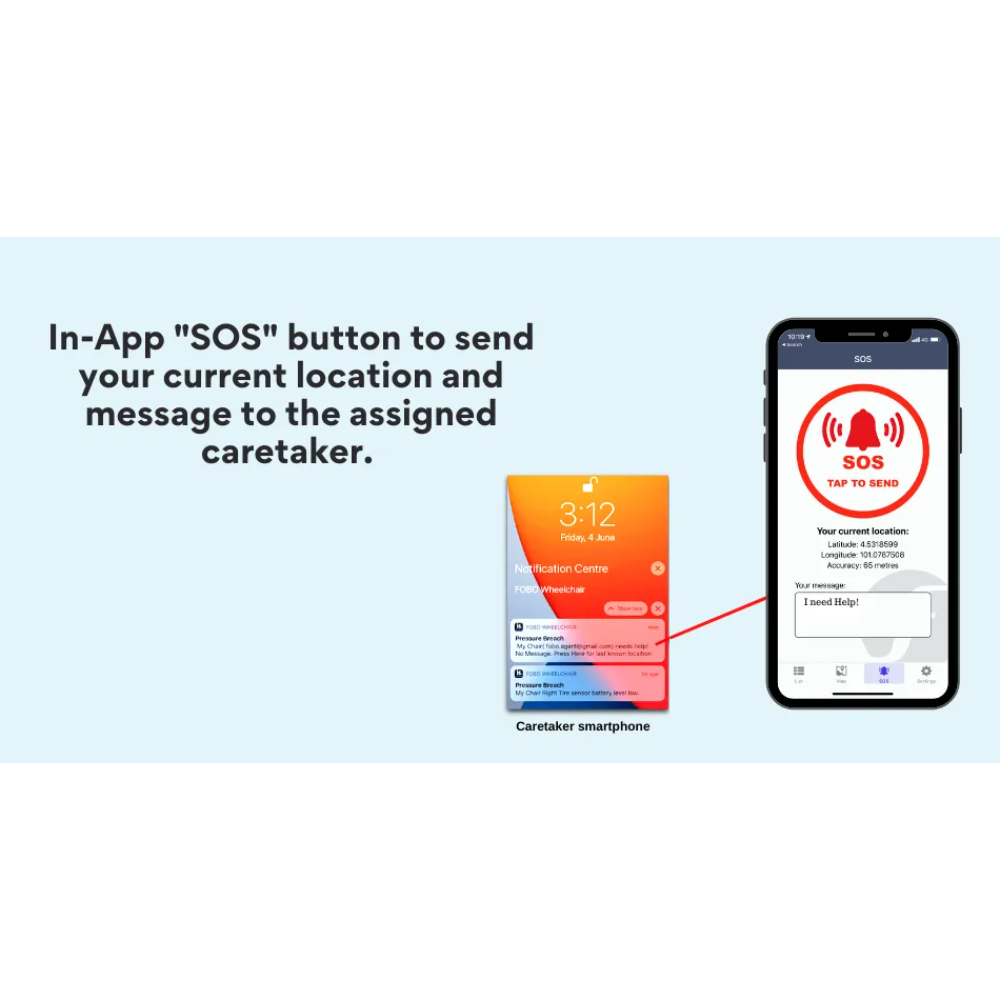

In-App "SOS" feature.
Maximum Pressure: 900kPa (130psi)
Weight: 7.6g (sensor Ðwith battery)

FOBO Wheely sensor Specification:
Bluetooth: v5.0
Transmit Conducted Power: +5.0dBm (sensor)
Receiver Sensitivity: Conducted Sensitivity -97dBm @ 0.1%BER
Antenna Return Loss: Typical -9dB
Operating Frequency: 2.402~2.480 GHz
Battery Type: CR1632 (sensor). Operating life up to 1 year. (NOTE: The battery operating life varies according to usage and climate temperature)
Operating Temperature: -30¡C to +85¡C (sensor), -20¡C to +60¡C (sensor with common CR1632 batteries)
Weight: 7.6g (sensor Ðwith battery)

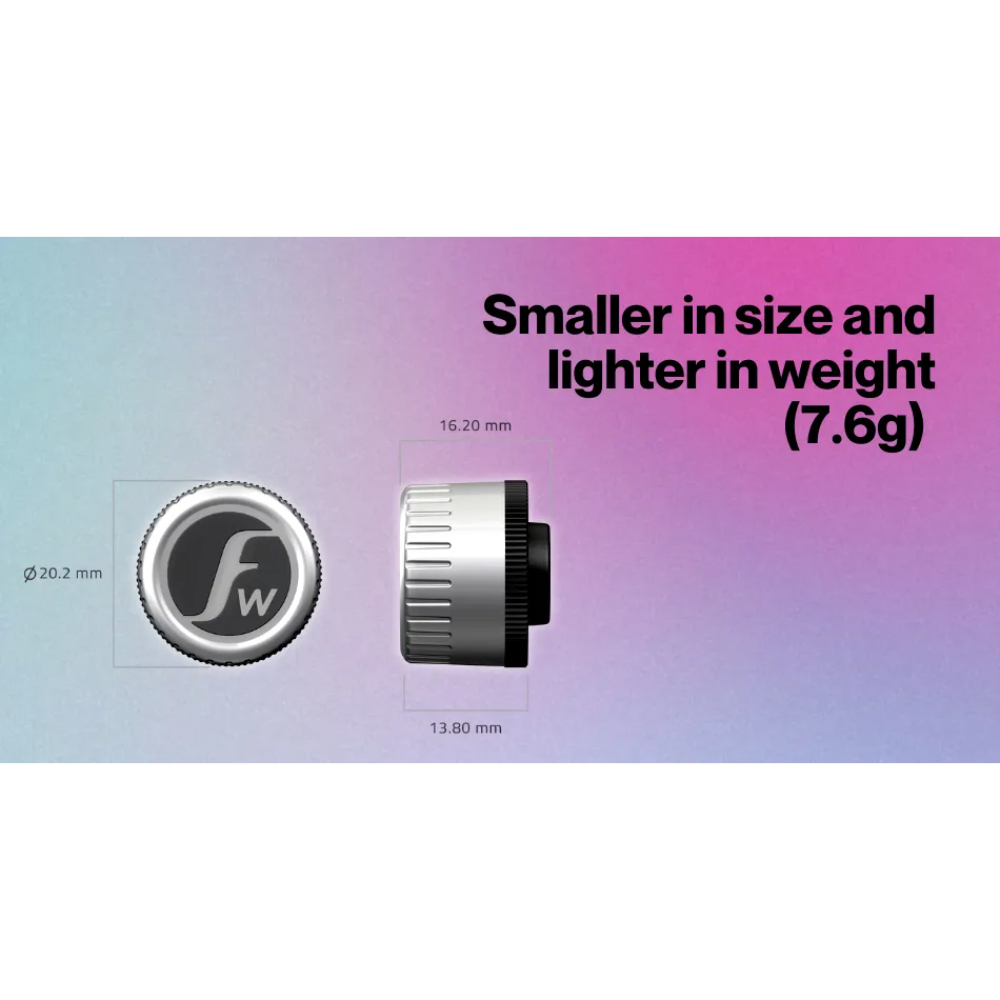

Sensor Dimension H x D: 13.8mm x 20.2mm
Maximum Pressure: 900kPa (130psi)
ESD: 8kV air discharge & 4kV direct contact discharge according to CE standard

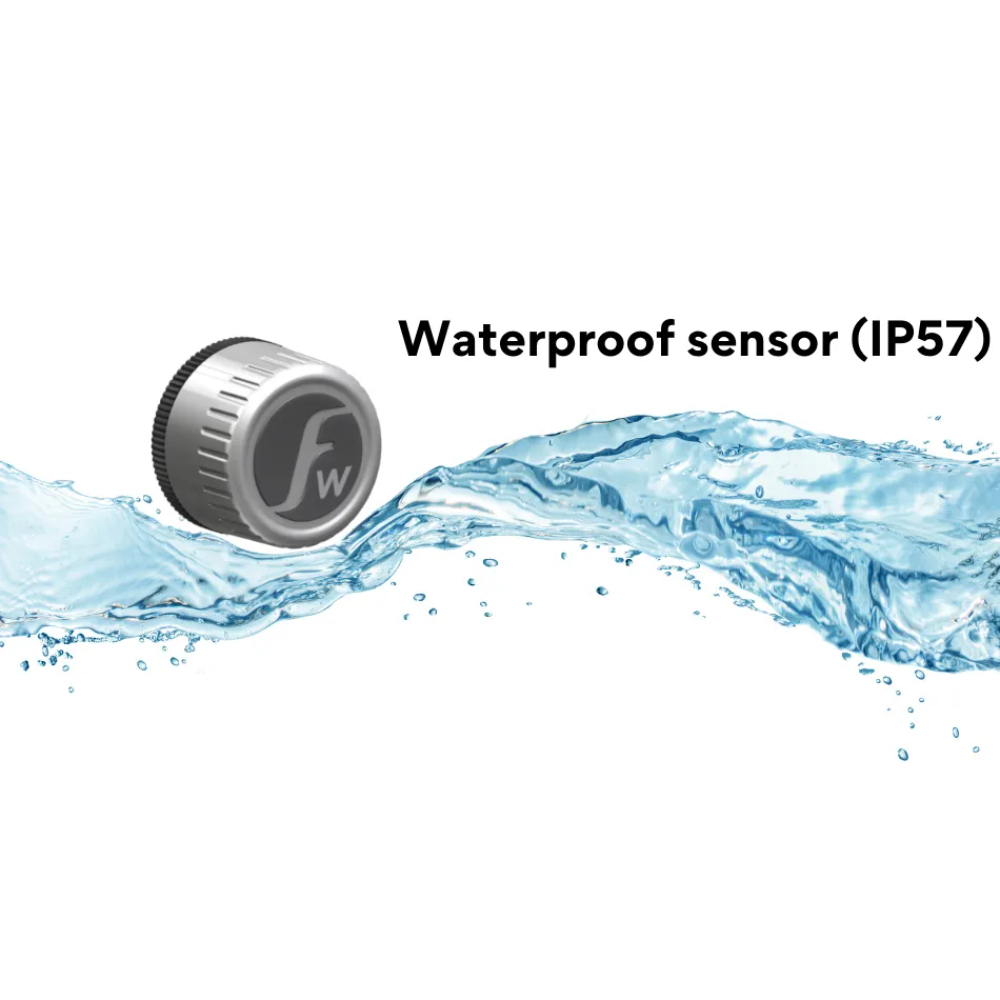

Dust and Water Proof: IEC60529 compliant to IP57(sensor)
Sensor structural threshold: 100N ball pressure intensity test
Mechanical & Environmental Reliability Testing Standards: IEC 60068-2-2, IEC 60068-2-1, ISO 21750, IEC 60068-2-29, IEC 60068-2-5, IEC 60068-2-32, ISO 15184, ISO 2409, SAE J2657, SAEJ113/13

NOTE: Please ensure sufficient clearance between the installed FOBO wheely sensor and any part of the wheelchair. There is a risk of damage to the sensor or ripping off valve from the rim or sudden air leak if clearance is insufficient; the valve may deflect under strenuous vibration.</p

Search Fobo in the app store for your device to download the free app to use.

WARNING: Button/coin batteries can cause severe injuries or even death when swallowed. Keep batteries out of reach of children. If you suspect a child has swallowed or inserted a button/coin battery, seek medical attention immediately.
